Metal plates and metal tubes handheld fiber laser welding machine

Product specification：

Consultation details

Product overview：

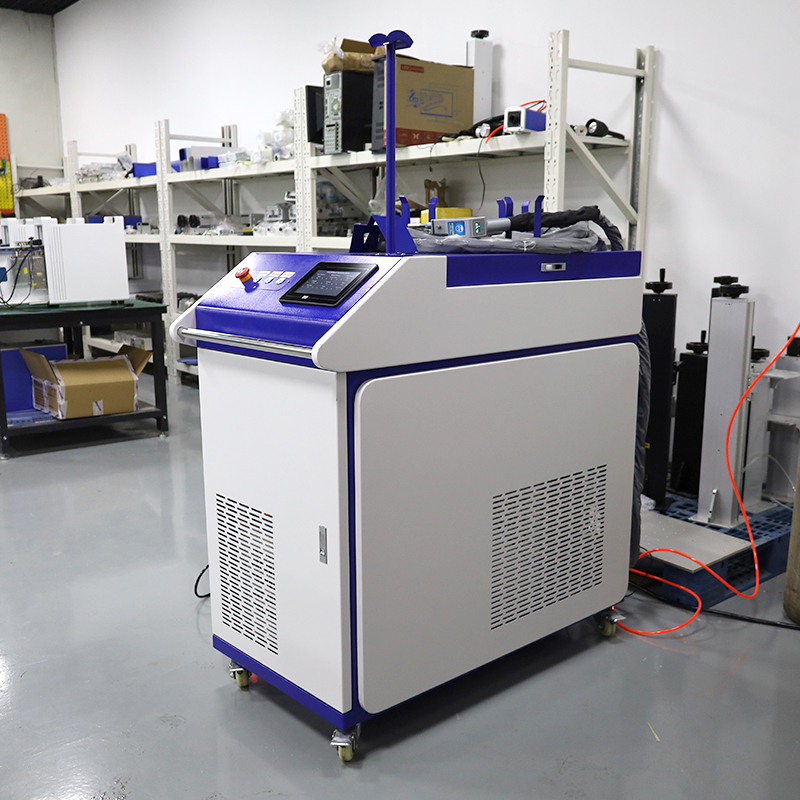

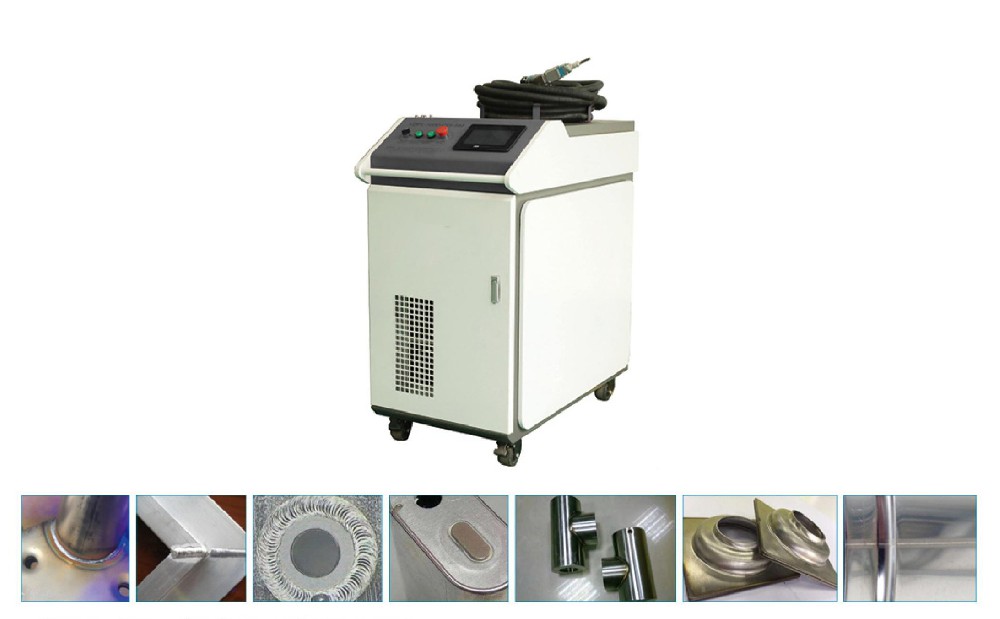

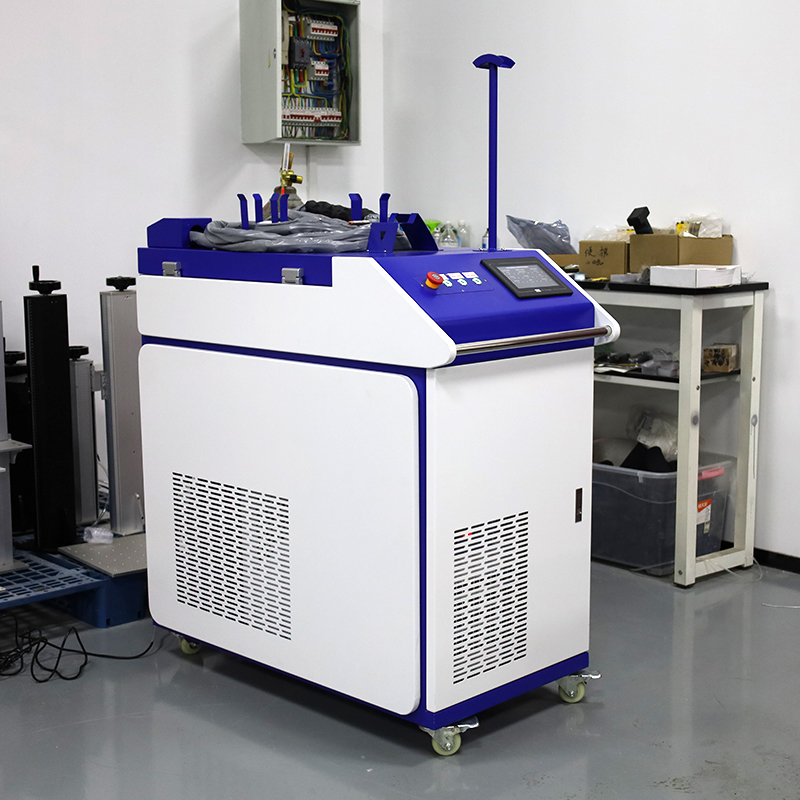

Fiber laser welding machine

Fiber Laser welding machine is suitable for welding gold, silver, titanium, nickel, tin, copper, aluminum and other metals and their alloy materials. It can achieve the same precision welding between metals and dissimilar metals. It has been widely used in aerospace, shipbuilding, and instrumentation. , Mechanical and electrical products, automobiles and other industries.

Products Description

Automatic Wire feed

No consumables, small size, flexible processing, low operating and maintenance costs.

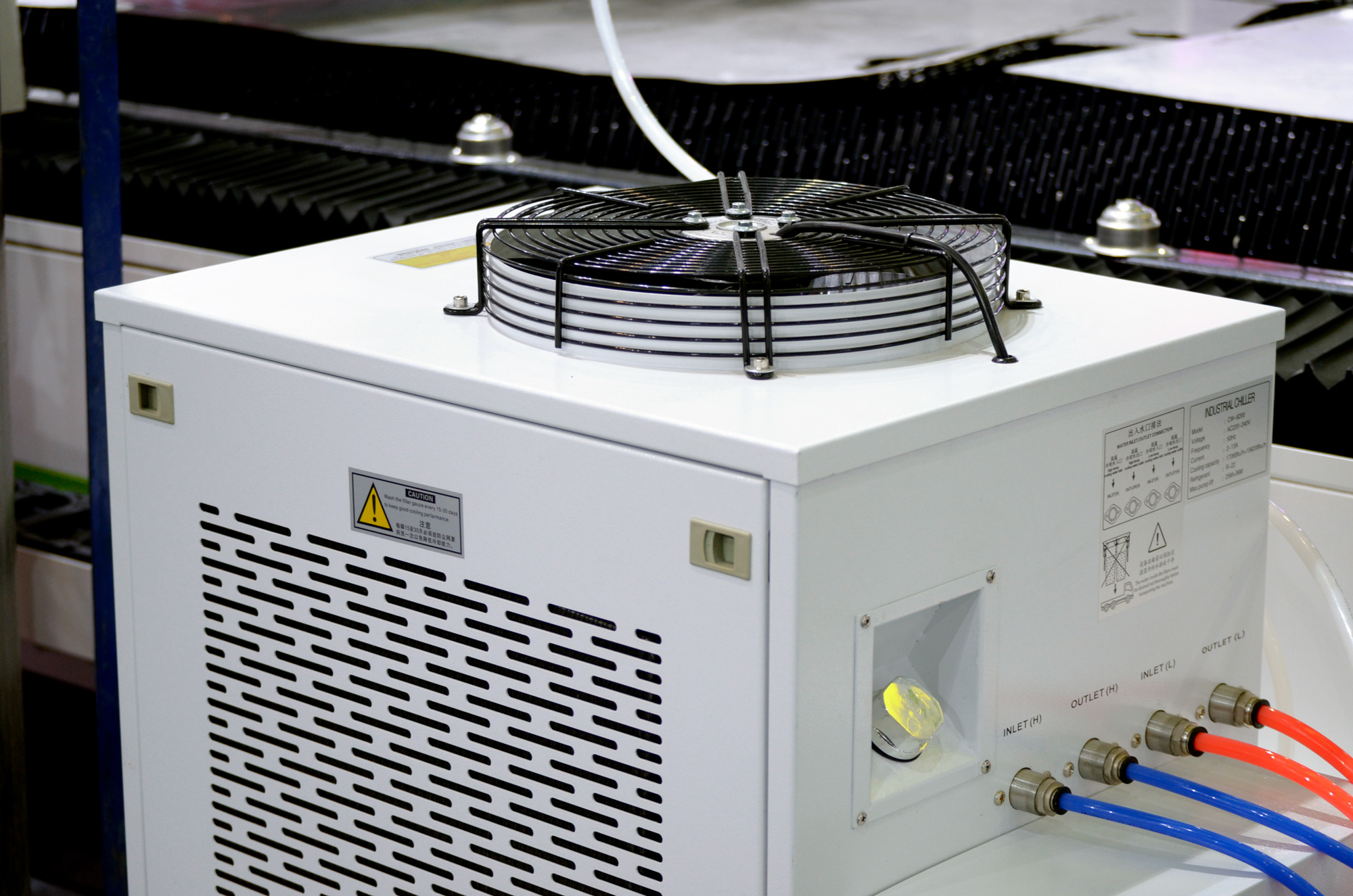

Water Chiller

High cooling rate, which can weld fine weld structure and good joint performance.

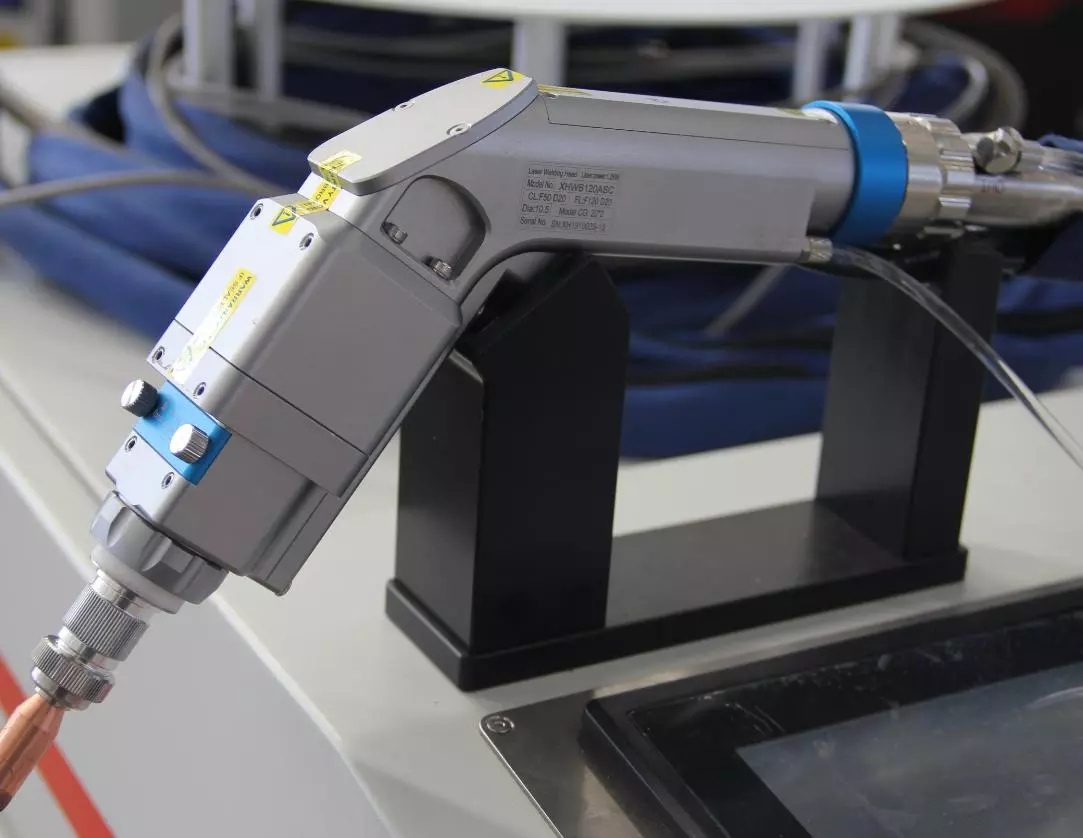

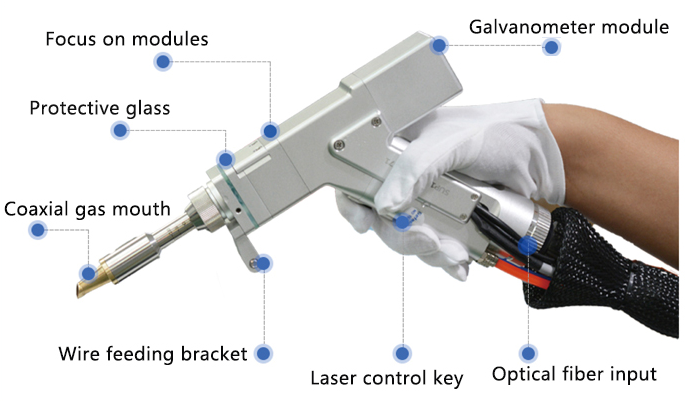

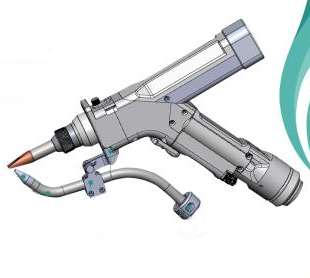

Laser Welding Head

Smart high frequency swing welding head. Can be widely used in metal equipment, stainless steel home and other industries complex
irregular welding process.

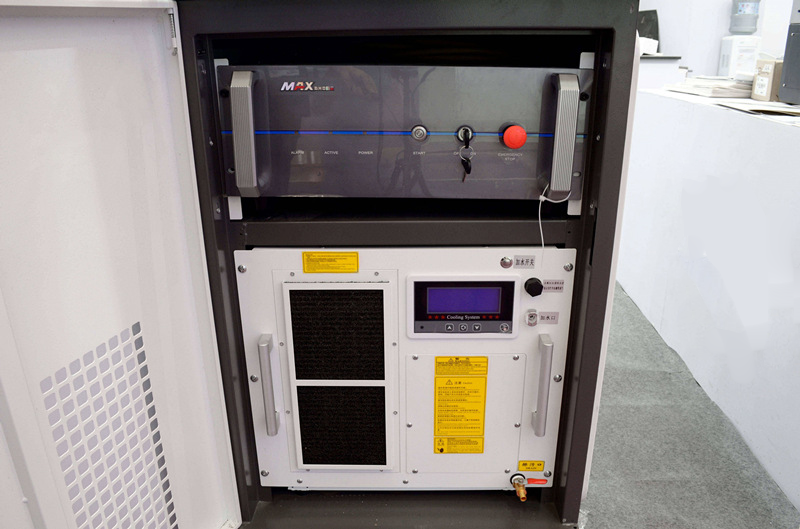

Laser Source

Chinese top brand fiber laser source Max, high power. The energy density is high, the heat input is low, the amount of thermal deformation is small.

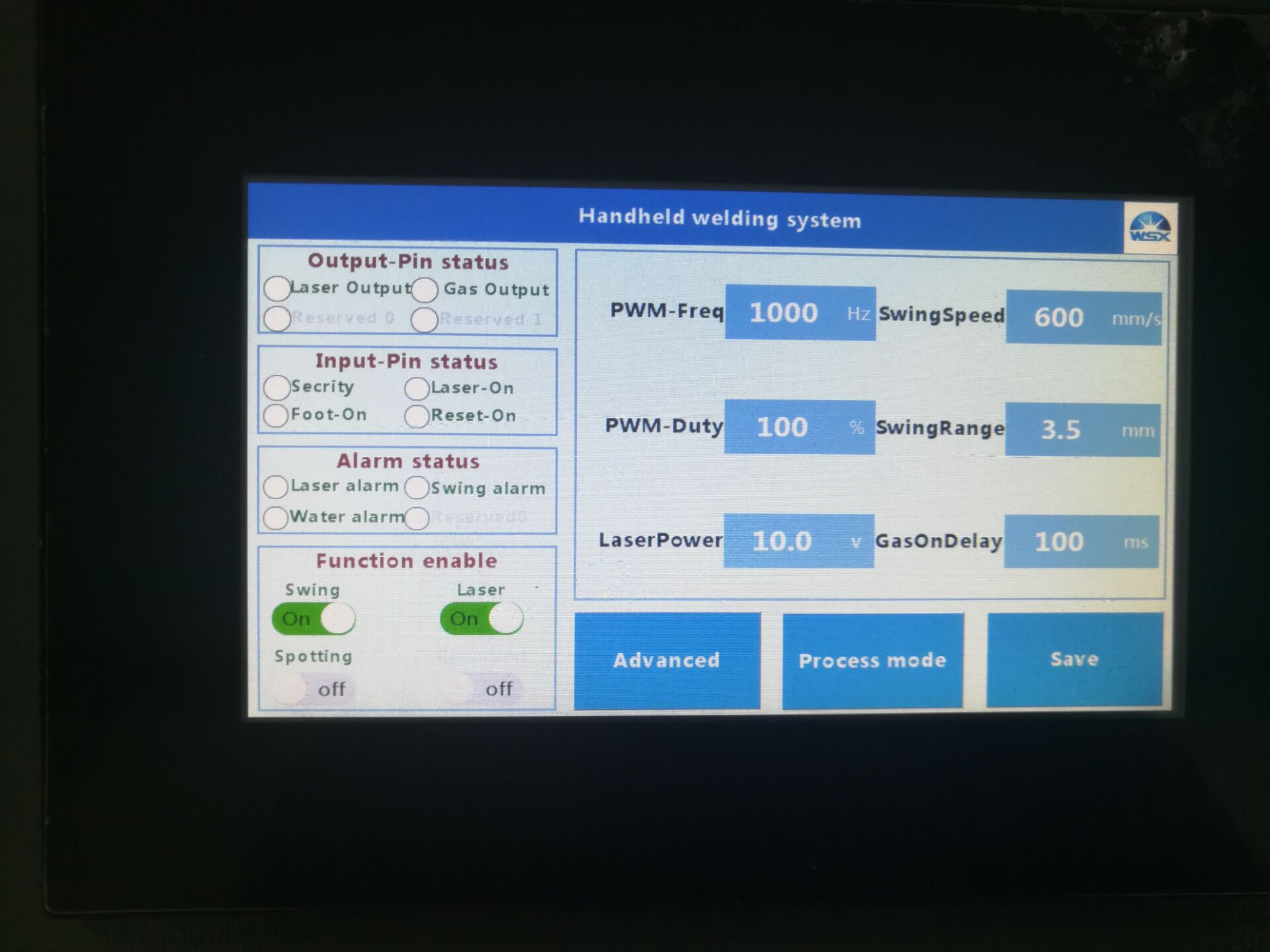

Control Panel

Xinghong control system, with auto layout optimization, ensure high speed operation of whole machine.

Specification

Model.No	LW-1000W	LW-1500W	LW-2000W
Operating Mode	Continuous/Modulation
Laser Wavelength	±2%
Power Requirements	220V/380V	220V/380V	220V/380V
Machine Power	≤7KW	≤9KW	≤11KW
Operating Environment Temperature Range	15-35℃
Working Environment Humidity Range	<70% No Condensation
Welding Thickness Range	0.5-0.8MM
Welding Line Requirements	≤0.5mm
Welding Speed	0-120mm/s
Machine Size	1190×1100×650mm

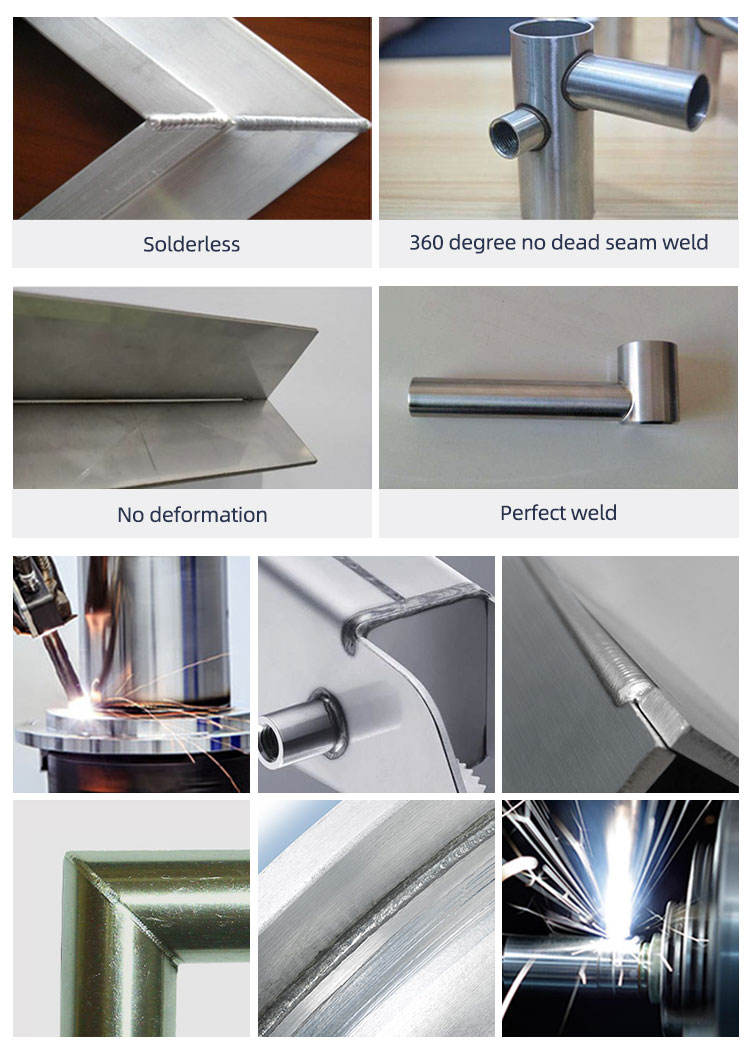

Samples

Leapion laser welding machine Application in Stainless steel, Carbon steel, Aluminum, Copper materials, etc.
Beautiful weld, fast speed, no consumables, no welding mark, no discoloration, no need to polish later. Can be configured with a variety of Angle nozzle to meet the welding needs of different products.
