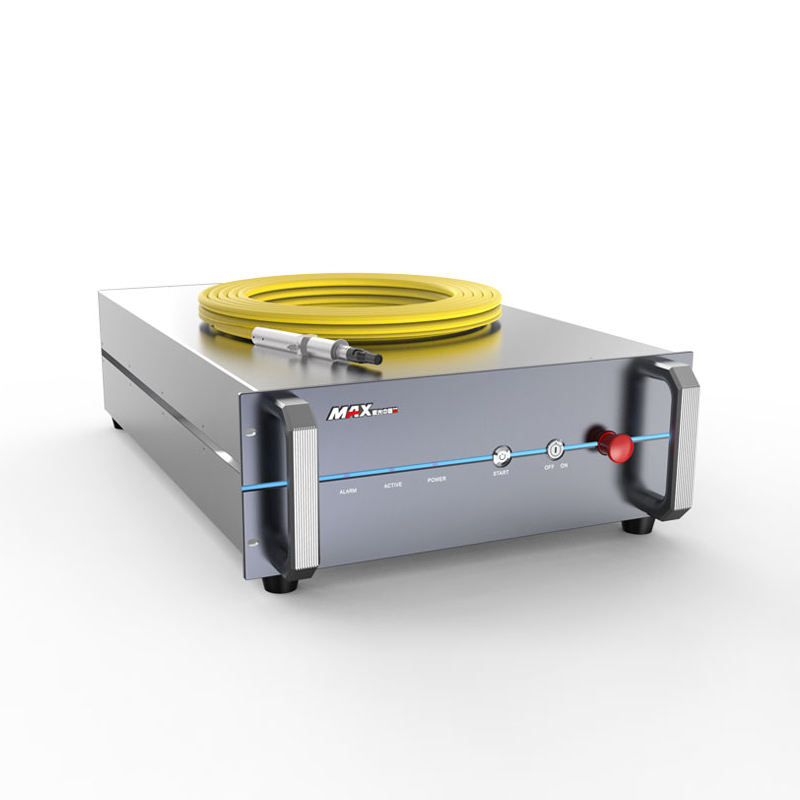

Original MAX fiber laser generator for fiber laser machine

Product specification：

Consultation details

Product overview：

Model	HM-1500
Optics Specitfication
Nominal Power	1500W
Mode of Operation	CW/ Modulated
Polarization	Random
Power Tunability	10 to 100%
Wavelength	1080 ± 10 nm
Power Stability	±1 %
Laser Beam Quality, BPP	≤ 1.5 mm x mrad (50μm QBH)
Modulation Frequency	≤ 20kHz
Preview Red Light Power	150 μW
Fiber Delivery System
Interface	QBH(LOC)
Length	15m standard, other lengths optional
Diameter	50 (35) μm
Bending Radius	200 mm
Electrical Ratings
Supply Voltage	220VAC (-15% to +10%) Single-phase
Other Specification
Operating Temperature	+10 to +40℃
Storage Temperature	-10 to +60℃
Humidity	10 to 85%
Cooling Method	Water Cooling
Cooling Medium	Distilled water/ Glycol Antifreeze

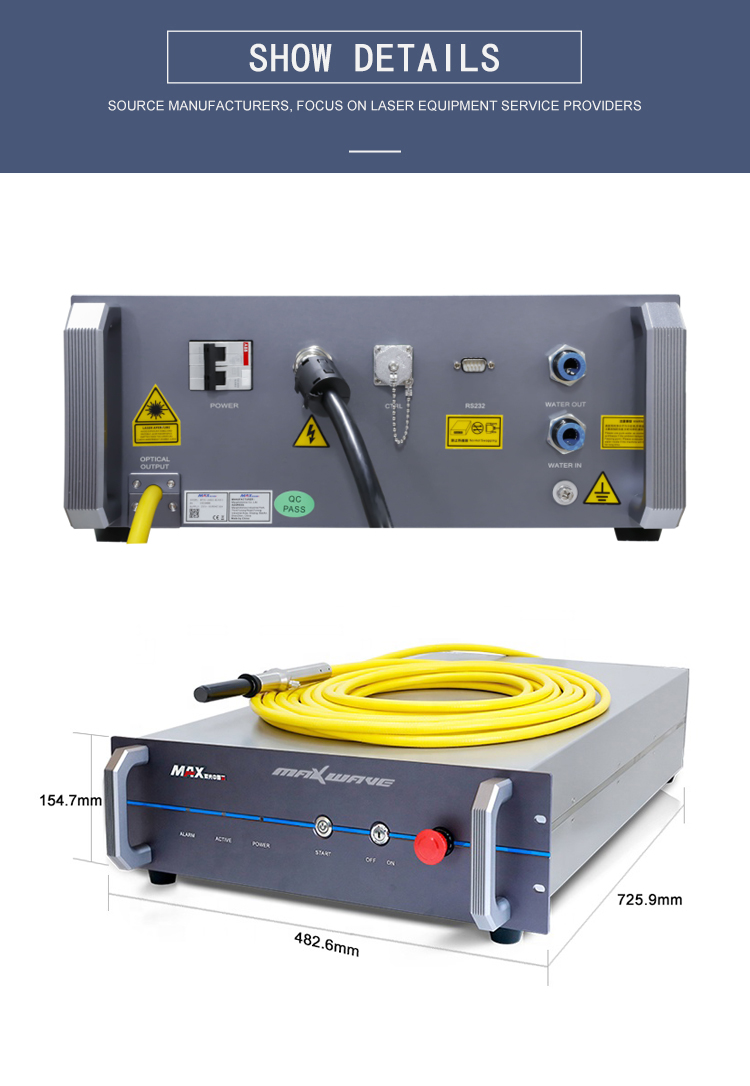

Dimension	482.6×800×193mm (W×D×H)
Net Weight	57(±3) kg
